Wellcome to the
Lumi-Con Homepage
Please see our
Data Privacy Commitment

Have a look on our News pages!

European Commission ODR-Page







Lumi-Con introduces new luminaire
of the Star Disc line:

Our Star Disc SL

is available now!

Here you find out datasheet!



You can order our product line
Lumi-Con-Bike-Harvesters

in the

Harvester-Online-Shop.




Bike Harvester Overview and Data Comparison


For designer and producer of luminaires we have a large number of
LED-Touch-Dimmer available.



Flyer DIMMER

You find innovative LED-Luminaires from
Lumi-Con
on the product pages:



Flyer Luminaires


  Now a new version of the
proven USB-P5 Harvester:

The improved

Lumi-Con
USB-P5CX

with galvanic
isolation from the dynamo!



The new version Lumi-Con harvester USB-P5CX with the high voltage and high current switch in the dynamo connection allows very fast and long downhills. The switch disconnects the dynamo from the harvester when the battery is full.
All other features correspond to the Harvester USB-P5C.

See our new USB-P5CX data sheet and the comparison data of our harvesters on our product pages.

Link to the shop.


  Now available:

The improved

Lumi-Con
USB-PMX Harvester

is available for shipping!



Lumi-Con anounces the USB-PMX Harvester, an improved version of the USB-PM Harvester. We were able to increase the charging power out of dynamo significantly - nearl by a factor of two (compared to USB-PM).
The battery capacitance had to be reduced slightly because of the available components on the market.

See our new USB-PMX datasheet and the comparative data on our product pages.

Link to the shop.


  After a long time:

The Lumi-Con USB-P12

is available again!



After a long time with tremedous delivery probelms of the semiconductor industry we are able again to deliver the Lumi-Con Harvester USB-P12 from mid of March 2023.

Link the Shop.




New:

The Lumi-Con USB-P5C

with USB-C Connector!



Because the EU decided the USB-C connector for all smartphones and related products we now introduce the new

Lumi-Con-Harvester with USB-C-Input!

The USB-P5C is now available. The new Harvester has all the excellent features than the actual USB-P5 as well as all variants are available.

Link to the Shop.




Lumi-Con's Online-Shop

is now open!







To give a better and faster support ordering ur Harvester products we included a online shop to our homepage.

Especially for foreign customers we included features to improve and fasten their ordering - especially regarding shipping.

Most technical feature description in the shop is in German, thus check also our English Product Pages for detailed technical information.

Test the Shop.

Of course you can also contact us directly if you have certain questions or need for special consulting.





Lumi-Con

introduces a new powerful

Bike-Harvester USB-PM!

- Waterproof
- Compact and
- Elegant Metal Case
as well as
- USB-C- and USB-Micro-Connector







Lumi-Con USB-PM - Bike-Energy-Harvester

This new development within our Bike Energy-Harvester-Family provides the well known powerful charging feature as the USB-P-Family as well as now a compact, waterproof and elegant case.

For connecting the smartphone we offer here a fixed, 25cm long charging cable with USB-C- or USB-Micro connector. The short cable guaranteed low loss.

The fixed dynamo cable can be delivered with various connectors.

In contrast to our well known harvesters we built only one battery cell in, thus we get a very compact design. The high quality of the built in cells guarantee a long life time. For changing defect cells we offer a battery change service.

The dynamo charging unit is similar to the powerful unit of the USB-P-family.

Features

USB-Output USBV-C or USB-Micor-Connector
Output current at 5V: 1.5A
Overload protection: Output disabled above 1.7A

Dynamo Input

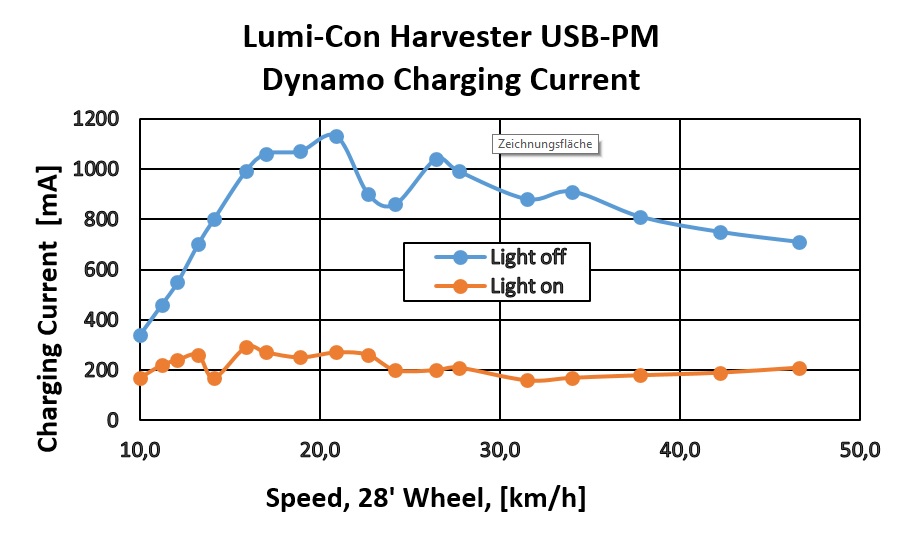

Input current: up to 1A (see bottom fig.)
Input current at speeds between 18 - 35 km/h: 0.8A
Safety circuit if dynamo is running idle (harvester not charging)

Other Items
Battery capacitance: 3.5 Ah - (premium cells)
Display: 6 LEDs for
   charging, ready, 30%-charged,
   battery empty, sleep modus
   Display for battery charge status
Package: 159 x 22mm (length x diameter)
Simple mounting at bike
Waterproof IP67

Included in Delivered Package
- Lumi-Con-Energy-Harvester USB-PM
- Dynamo cable mounted to harvester
- Various connectors available
- USB-C or USB-Micro cable mounted to harvester
- Mounting material
- Detailed documentation

Optional Features on Request
Mains charger 12Vac
Various connectors for the dynamo cable
Various Fixing options

Available also for this
Lumi-Con Bike Energy Harvester
is an electrically and mechanically
Removable Mounting Set which allows flexible usage of your harvester.



Read more on our product pages
or in the datasheet USB-PM.




Lumi-Con's Bike Harvester

now with

50%
more output power

at USB-Port !





Lumi-Con's Bike Harvester P5 und P12 are now delivered with 50% higher output power. This means an output current of up to 1.5A at the 5V USB port. in addition, further improvements at the output driver lead to better charging behaviour at modern high end smartphones.






An independent test including our product shows the

Lumi-Con Bike Harvester

as a very powerful model!







A test report published on the page Fahrradzukunft shows the Lumi-Con Bike Harvester as top model regarding technical features at very low cost comparable to others. (in German, please note that the results are made with a different hub dynamo then our test in the data sheets. Therefore the slightly different results can be explained).

Both adjacent figures show the power of our device. The upper figure shows the electrical power charged into the battery vs. speed (28" wheel). At low speed (15km/h) the Lumi-Con Bike Harvester USB-P5 delivers same performance than others, at higher speed the deviations are negligible.

The bottom figure shows the power charged during a 20 minute drive at changing speeds. The Lumi-Con Bike Harvester achieves the second bhest result. (The reason why we loose some power respective to the 1st one is given by some safety circuits we included to prevent from destruction at a wrongly built in batteries by the customer. This safety circits consume some power. Please note: our harvester is the only one which allows battery exchange by customer.)

The Lumi-Con Bike Harvester (here the USB-P5) provides a top price/performance ratio. In addition we have the highest battery capacity. Therefore it can be used as good power pack after the tour (e.g. in the tent). The mains charger is included.

We provide a similar model in addition, the USB-P12, which has same performance regarding hub dynamo charging but much faster mains charging.

Here you can see the complete test report (sorry, german only).

Source: Fahrradzukunft_17 on page https://fahrradzukunft.de/28/steckdose-unterwegs-7/

Another english test report can be found here. This report is partly based on the German report above.




New from Lumi-Con!

Another very powerful

Bike-Harvester USB-P12

with vey fast mains charging!








Lumi-Con USB-P12 - Bike-Energy-Harvester

A further new development within our Bike Energy-Harvester-Family provides the same powerful charging feature as the USB-P5 but allows much faster mains charging (only 1.5h).

The new designed charging concept of the USB-P12-Harvester provides a peak charging current up to 2A from a mains charger - giving peak charging power of up to 12W (depends on cell voltage). As in all our harvesters two reliable premium LiIon cells with high life time are designed in.

The hub dynamo charger compares to that in the USB-P5 (see below).

Features

USB-Output
Output current at 5V: 1.5A
Overload protection: Output disabled above 1.7A

Power Input
Input current at 12V; max. 1.3A
Time to charge from mains: approx. 1.5 h (80%)
Battery charge current/power: up to 2A/12W (depending on battery voltage)

Dynamo Input

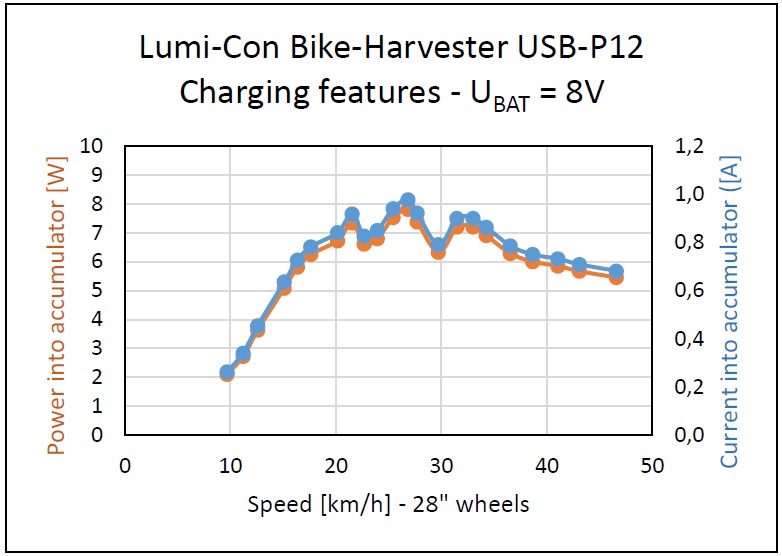

Input current: up to 1A (see bottom fig.)
Input current at speeds between 18 - 35 km/h: 0.8A
Safety circuit if dynamo is running idle (harvester not charging)

Other Items
Battery capacitance: approx. 21Wh - (premium cells)
Batteries are replaceable
Display: 3 LEDs for
   charging, ready, 30%-charged,
   battery empty, sleep modus
Package: 112 x 62 x 31mm
Simple mounting at bike
Safe against rain and splash water from 5 sides

Included in Delivered Package
- Lumi-Con-Energy-Harvester USB-P12
- Dynamo cable (mounted to harvester)
- USB cable USB-A -> USB-Micro-B
- Mains charger 12V/24W
- Mounting material
- Detailed documentation

Read more on our product pages
or in the datasheet USB-P12.

Harvester Removable Mounting Set

Available also for this
Lumi-Con Bike Energy Harvester
is an electrically and mechanically
Removable Mounting Set which allows flexible usage of your harvester.




We are proud to present
the new powerful

Lumi-Con

Bike-Harvester USB-P5







Lumi-Con USB-P5 - Bike-Energy-Harvester

Our newest Bike Energy-Harvester has superior charging behaviour.

The new designed charging concept of the USB-P5 allows a charging currents of up to 1A from usual hub dynamos. The respective charging power is up to 8W netto (excluding losses in rectifiers etc.) into the battery (see diagramm below).

As in all our harfvester two premium LiIon-Batteries are designed in for high ife time.

Furthermore we designed a powerful USB-Booster which allows charging the battery from a standard mains charger (5V/2A). A suitable charger is attached. The USB-Input uses a standard Micro USB-B-plug.

Features

USB-Output
Output current at 5V: 1.5A
Overload protection: Ouput disabled above 1.7A

Power Input
Input current at 5V; max. 1.3A
Time to charge from mains: approx. 3 h (80%)
Battery charge current/power: up to 0.5A/4W (depends on cell voltage)

Dynamo Input

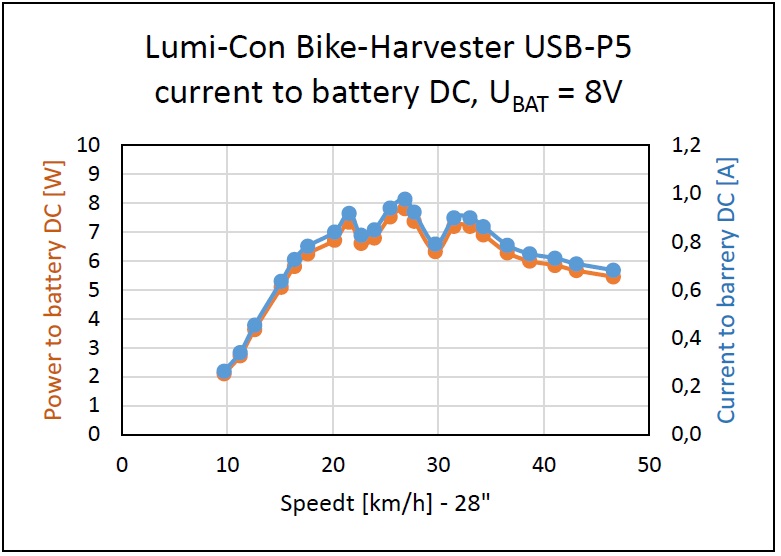

Input current: up to 1A (see bottom fig.)
Input current at speeds between 18 - 35 km/h: 0.8A
Safety circuit if dynamo is running idle (harvester not charging)

Other Items
Battery capacitance: approx. 21Wh - (premium cells)
Replaceable cells
Display: 3 LEDs for
   charging, ready, 30%-charged,
   battery empty, sleep modus
Package: 112 x 62 x 31mm
Simple mounting at bike
Safe against rain and splash water from 5 sides

Included in Delivered Package
- Lumi-Con-Energy-Harvester USB-P12
- Dynamo cable (mounted to harvester)
- USB cable USB-A -> USB-Micro-B
- Mains charger 5V/10W
- Mounting material
- Detailed documentation

Lear more on our product pages
or in the datasheet USB-P5.

Harvester Removable Mounting Set

Available also for this
Lumi-Con Bike Energy Harvester
is an electrically and mechanically
Removable Mounting Set which allows flexible usage of your harvester.




New for your Harvester!

On frequently request we present:




Lumi-Con Harvester Removable Mounting Set


The Removable Mounting Set allows flexible usage of your Lumi-Con Bike Energy Harvester. It consists of a stainless steel holder, a hook and loop fastener and some fixing material and a cable with connector. Thus you can easily detach the harvester when used elsewhere.

More information on our product pages or in the datasheet USB-H.





Versatile

Lumi-Con Bike Energy Harvester USB-D

The ideal smartphone supply during biking.






Lumi-Con presents the new Bike Energy Harvester USB-D for your bike.

Our Bike Energy-Harvester is the ideal smartphone supply during cycling.

The Energy Harvester supplies your smartphone with energy from the hub dynamo. The harvester has a usual USB interface (5V). Thus you can use the smartphone during biking continously (e.g. as navigator) or recharge the smartphone battery.

Features

The harvester USB-D offers a 5V-USB-charger with currents up to 1A - compatible with all smartphones. It has an internal buffer battery therefore it can be used offline (disconnected from hub dynamo) or during rest.

The harvester has two different identical charging inputs, one of it has a power connector (5.5mm). Charging can also be done via attached mains charger (12V).

Specification

- Battery capacitance: 2 x 2500mAh - cells are exchangable
- Display LEDs for: charging, ready, empty battery, sleep mode
- Package: 112 x 62 x 31mm
- Simply mounting at bike
- Safe against rain and splash water from 5 sides

Included in Delivered Package
- Lumi-Con-Energy-Harvester USB-P12
- Dynamo cable (mounted to harvester)
- USB cable USB-A -> USB-Micro-B
- Mains charger 12V
- Mounting material
- Detailed documentation

Lear more on our product pages
or in the datasheet USB-D.

Harvester Removable Mounting Set

Available is an electrically and mechanically Removable Mounting Set which allows flexible usage of your harvester.






Lumi-Con LED-Flash Generators

Lumi-Con designs
High Power LED-Flash-Generators

with high power output up to 10.000W and some ms flash duration.

Read more on our product pages.



  Worldwide Novelty!

High Power LED-Booster
for Touch-Operation.



Lumi-Con introduces a very small LED-Booster with high driving power and Touch-Sensor-Operation.

Featuring a diameter of only 18mm and a lenght of 16mm the DEMO module shows a driving power of up to 8 W (figures on top).

The DEMO module includes the LED driver, the LED-board with very good power dissipation as well as the reverse battery protection board. The DEMO module is designed to simplify first operation and may be directly attached to a Li-Ion-Accu (e. g. type 18650).

A variety of products with different voltages and functions are available soon.

This module is also possible to be integrated into custom packages. Custom dimension of the boards are also offered to be designed in a short time.

The mentioned boards (bottom figure) can be easily integrated in a custom environment.

The products are applicable for LED-pocket-lamps with and without touch function and other touch LED-lamps having external power supply.

Read more on our product pages
product pages or in the detailed data sheet data sheet.

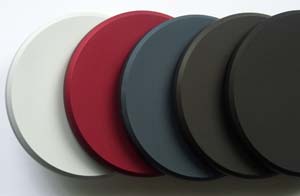

  New colours for our Star Disc!


Our favoured LED lamp Star Disc get new colours.

Now available are the new colours silver, grey-blue (anthrazit-blue) and dark brown besides our existing colurs black and bordeaux.

Learn more on our product pages
or in the data sheet.




Lumi-Con provides a new

Touch-Extension-Module

for its Touch Dimmers. With this module you can increase wire length to sensor inputs of our Dimmers by up to 10m. This module enables therefor furhter applications for our dimmer modules.

The modules are built extremely compact (15 x 15 x 5mm) and have 3 connection cables for attaching the Dimmer and a touch pad. The wire length from touch pad to the sensor input can be increased up to 10m. The modules don't need any furhter supply and can e.g. easily glued to a metalic or conductive touch pad.

Read more on our accassory pages.




Lumi-Con offers new

Aluminium-LED-boards

for up to 7 High Power LEDs.

The boards suitable for our dimmers and can be assembled with OSRAM-OSLON- and CREE-LEDs. Dfferent LED configuations can be made asssembling the onboard 0-Ohm resistors. the boards are also available customer specific assembled. Power of 7W and up to 100 Lumen can be reached with suitable heat sinks.
Read more on our accessory pages.




Lumi-Con anounces its new DIMMER control technology. The new SC2-Dimmer family incorporates a seriel interface which makes it possibel to trasmit Dimmer Data from one mopdule to onother. Thus, e.g. controlling of serveral Dimmer modules from one touch pad is possible. Syncronizing of several SC2-Dimmer modules is easily possible.

More inforamtion in our product data sheets on our product pages
or contact us for consulting.

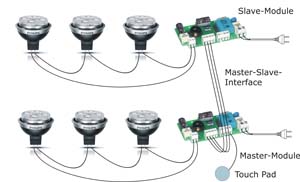

Lumi-Con Dimmer are able to drive commercially available LED-12V-Spots and Lamps. You can connect up to 18 Spots depending on power level. An extension with additional dimmer modules is possible.

More information in our
application note and the
Dimmer data sheets
or contact us for consulting.

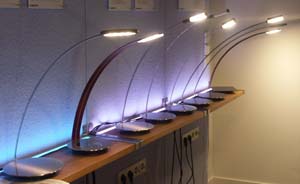

Lumi-Con's new LED table lamp generation won the
BEST OF INDUSTRIEPREIS 2012

award!

The price features products with a high economical, technological and ecological advantage.

The new luminaires provide high light output, low power consumption, a modern minimalist design as well as a newest technological integration. All luminaires are equipped with our LED touch dimmers and available with colour temperature control.

More detailed information on our product pages and the news page.

See also the
INDUSTRIEPREIS pages.




Lumi-Con at the Light+Building 2012!

Lumi-Con presented its technology at the Light+Building, the worldwide largest trade fair for architecture and technology.

Beside our new Dimmers SC3 and SC4 we presented our very new table luminaires. The actual luminaires, especially our brightest model Star Disc, attract much interest. Also our new Facelina with its quadratic pedestal and the nice window with visible electronics went down well. Customers liked also the cantilevering Candelino because of its flagelliform and slim design and because of its high light output.

All luminaires are equipped with our LED touch dimmers and available with colour temperature control.

More detailed information on our product pages and the news page.

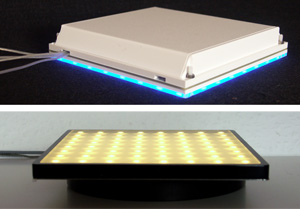

Lumi-Con introduces its new LP-64 Lighting Units with two different packages: an elegant very flat Design-Package and a fully isolated installation housing.

The modules incorporate 64 white or colour LEDs and are operated with Lumi-Con Dimmers directly from mains voltage. They have up to 1100 Lumen light output at 22W electrical power. (product description).




Lumi-Con introduces its new LP-64 Lighting Units with two different packages: an elegant very flat Design-Package and a fully isolated installation housing.

The modules incorporate 64 white or colour LEDs and are operated with Lumi-Con Dimmers directly from mains voltage. They have up to 1100 Lumen light output at 22W electrical power. (product description).

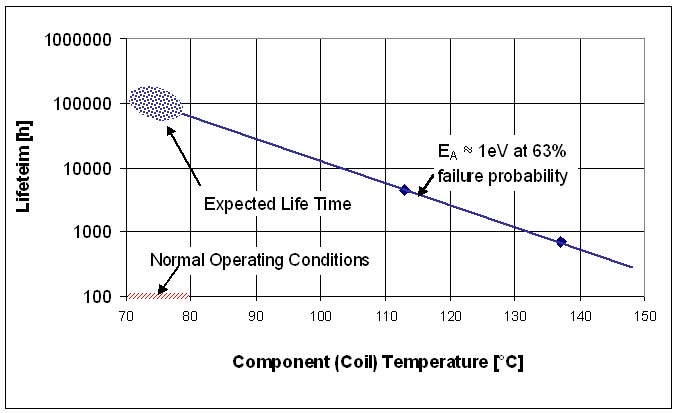

The actual results of the Lumi-Con SC2-Dimmer life tests show impressive 50.000 hours life time. Thus, our DIMMERs are fully compatible to the LED life time and allow the design of maintenancefree LED-luminaires and LED-installations.
(read more here).




New powerful

Triple LED Dimmer

available from stock in small quantities.

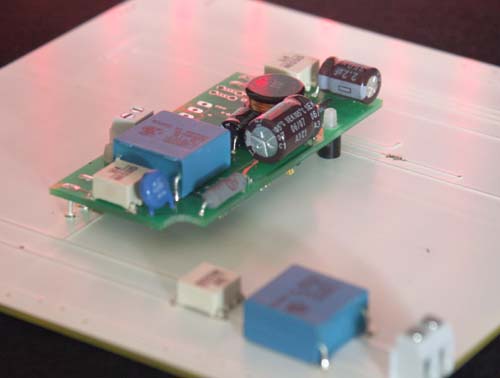

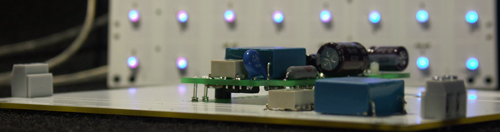

  Lumi-Con anounces a new very powerful triple LED-Dimmer:

the brandnew

SC4-Triple-Touch-LED-Dimmer

for large lumiaires with high light output up to 2000lm.



The powerful DIMMER allows driving up to 48 High Power LEDs with an electrial power of up to 23W. The controlling is done via touch pads through simple touching without a mechanical switch. Again, as for all Lumi-Con DIMMERs, integrated are all necessary functions to operate a lumiaire:
- a Power Supply for mains voltage (230V),
- a LED Controller as well as
- the Touch-Dimmer function.




This new DIMMER allows powerful applications as e. g. operating of RGB LED displays or applications with variable color temperature. Using white LEDS of actual production you can build up luniaires with up to 2000 lm. The DIMMER contains three independent or synchrnous LED-controllers.

A current regulation within the controller guarantees constant LED current also with changing mains voltage as well as through life time. The integrated voltage supervisor gives additional safety and switches off the controllef in case of probelms.

Lear more about this DIMMER on our product pages!






Lumi-Con anounces a new family of

LP64 Plane Lighting Units


White or warm white plane lighting units are assembled with 64 Medium Power LEDs and radiate light power of up to 1100 lm (equal to a 100W light bulb) with only 22W electrical power consumption. Similar RGB-lighting (red-green-blue) and are capable to generate all colours. RGB-units deliver up to 450 lm at an electrical power of 13W. The 2-dimensional plane light generates a very smooth, convenient and antiglare light distrbution. Applications are, for example, lighting of show cases or interior lighting.

The lateral dimensions of the units are 150 x 150mm with a hight of only 3.5mm (board version). The LEDs are assembled in a grid of 18.75mm. Several lighting units can be mounted beside each other to get a bigger area without hurting the grid.

The lighting units can be delivered with Lumi-Con's approved Dimmer Modules integrated. In this case the overall hight of the module is only 20mm (board version). It id possible to store light intesity or colour depending on the used Dimmer module. The Lighting-Units are operated from direct mains voltage. Lumi-Con's Dimmer Modules allow also touch sensor operation as well as controlling by serial interface.

The high quality of the Dimmer modules (Made in Germany) as well as the assembled LEDs guarantees a long life time.

Learn more about the modules on our product pages!




The Lumi-Con SC1-Touch-Dimmer won the INDUSTRIE PREIS 2008 of the
German Initiative Mittelstand.




Learn more about LED technology on our Technology-Pages! Using LED lighting is - from an ecological view - a very interesting step towards an efficient illumination approach.
